UVX Phosphorescence Sensor
UVX Phosphorescence Sensor
- High-speed
- Numeral display
- Calibration option
$1,499.99
Detect phosphorescent pigments in materials like paints and inks on your production line, speeding up response times and simplifying setup for enhanced quality control in manufacturing and assembly.
UVX-300P Phosphorescence Sensor Overview
Confirm the presence of phosphorescent materials and pigments used in paints, adhesives, security inks, and plastics reliably with the UVX-300P phosphorescence sensor.
The UVX™ employs our field-proven technology for effective detection in a wide variety of assembly, manufacturing, and packaging processes
Since phosphorescent materials continue to emit light after the UV excitation has been removed, it is necessary to control sampling and measurement to assure that this does not interfere with the sensor detection process. High sensitivity and fast response make the UVX-300P suitable for high-speed automation processes. The metal alloy case and glass lens provide robust construction expected in an industrial environment.
Features a 2-digit display that provides an indication of signal strength making set-up and integration quick and easy. The versatile sensor provides user set-up parameters including light source intensity adjustment, detection threshold, and gain selection making the UVX useful in a wide range of applications. The UXV includes both a discrete PNP/NPN output and an analog output. The discrete output is automatically set for PNP or NPN operation. The analog output signal may be used to assess the relative quantity of UV materials such as phosphorescent inks, paints, and adhesives.
Phosphorescence Detection
Security Ink Detection
Paint Pigment Detection
Adhesive Detection
The UVX™ employs our field-proven technology for effective detection in a wide variety of assembly, manufacturing, and packaging processes
Since phosphorescent materials continue to emit light after the UV excitation has been removed, it is necessary to control sampling and measurement to assure that this does not interfere with the sensor detection process. High sensitivity and fast response make the UVX-300P suitable for high-speed automation processes. The metal alloy case and glass lens provide robust construction expected in an industrial environment.
Features a 2-digit display that provides an indication of signal strength making set-up and integration quick and easy. The versatile sensor provides user set-up parameters including light source intensity adjustment, detection threshold, and gain selection making the UVX useful in a wide range of applications. The UXV includes both a discrete PNP/NPN output and an analog output. The discrete output is automatically set for PNP or NPN operation. The analog output signal may be used to assess the relative quantity of UV materials such as phosphorescent inks, paints, and adhesives.
Key Features:
- Digital display of phosphorescence level simplifies set-up
- High-resolution analog output allows monitoring of sample by external system
- Auto-teach and manual adjustment – easy for low-skill operators, but able to be finely tuned
- High detection speed with 100 microsecond discrete output response
- Metal alloy housing and glass lens for industrial applications
- High-speed
- Numeral display
- Calibration option
Applications
Phosphorescent Materials
Detect and verify phosphorescent materials in manufacturing for quality control and process optimization.
Invisible Ink
Sense invisible inks for security and authentication purposes in high-speed automation.
Specialty Medical Adhesive
Verify specialty medical adhesives in assembly processes for reliable medical device manufacturing.
Custom?
Click here to share your application needs with our team and we'll work with you to find (or make) something that fits.
Videos
Phosphorescent Paint Detection
UVX-300P Phosphorescence sensor detecting phosphorescent paint on a black background.
ACCESSORIES
-
UVX Cable
$34.99 Select options This product has multiple variants. The options may be chosen on the product page -
UVX300-BRKT
$31.99 Add to cart -

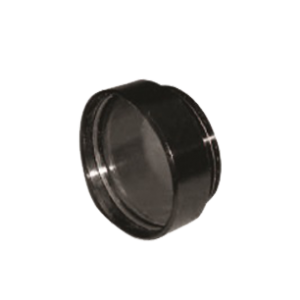

UVX300-L50
$43.00 Add to cart
UVX-300P Phosphorescence Sensor Technical Specifications
| Specification | UVX-300P | UVX-300P-FG |
|---|---|---|
| Display Range | 0-99 | 0-99 |
| Sensitivity | Special | Special |
| Gain Selections | Adjustable | Adjustable |
| Spectral Sensitivity | 400-700nm | 500-700nm |
| Discrete Output | PNP/NPN | PNP/NPN |
| Operating Range | 20-350mm (affected by the level of phosphorescence in the target material) | |
Notes:
1. The operating range is affected by the level of phosphorescence in the target material.
2. UVX-300P-FG with suppression of blue emission common with OB (optical brighteners) in paper.
Documents
Spec Sheet
Manual
Contact Us About Your Solution
